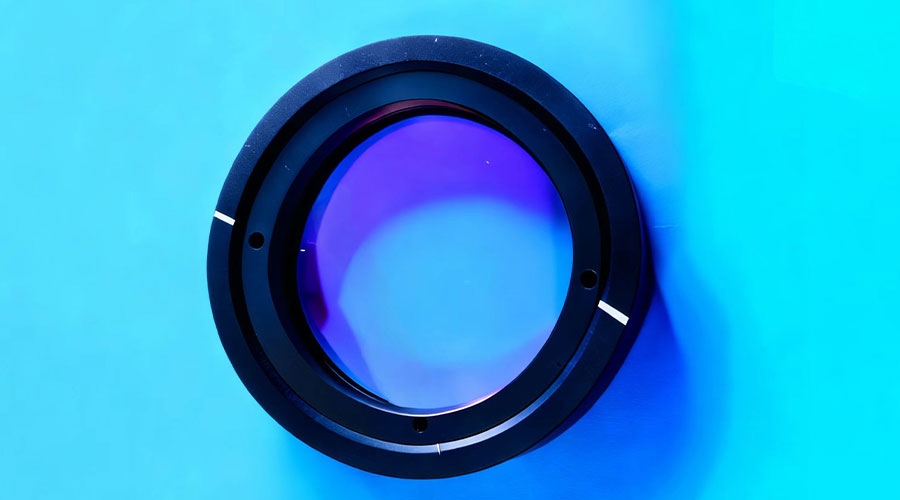

low-order waveplate

Specifications

A low-order waveplate is fabricated from a single piece of quartz crystal, producing phase retardation of several orders for the designed wavelength. It is a physically robust single component with desired performance; however, even small changes in wavelength or temperature can cause variations in the required fractional retardation. It features a narrow wavelength bandwidth, and its temperature stability and field of view are inferior to those of zero-order waveplates. With a typical thickness of approximately 0.3-0.5mm, it is suitable for use in light source systems with excellent monochromaticity.

Specifications:

Material:
Quartz
Wavelength Range:
200~2300nm
Dimension Tolerance:
+/-0.1mm
Surface Quality:
20 / 10
Parallelism:
<1''
Phase Retardation Accuracy:
< λ/300
Clear Aperture:
>90%
Damage Threshold:
>500MW/cm2
Coating:
Anti-Reflective (AR) Coating on Both Sides
Mount:
Hard Aluminum with Black Oxide Finish

Standard Wavelengths:

355nm
532nm
632.8nm
780nm
795nm
850nm
980nm
1064nm
1310nm
1480nm
1550nm
