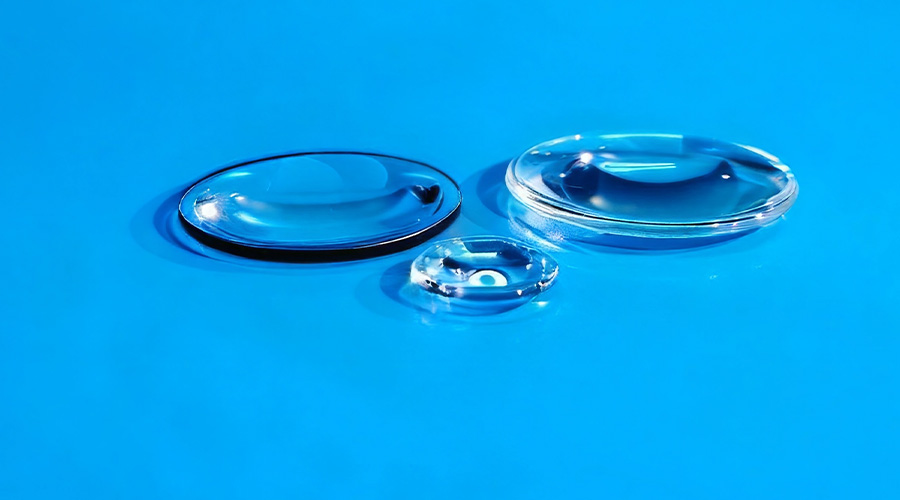

Bi-Convex lenses
Bi-Convex lenses feature a longer focal length at the center of the lens surfaces and a shorter focal length at the edges. Bi-Convex lenses are mainly used to converge light from point sources or tran..
Specifications
Bi-Convex lenses feature a longer focal length at the center of the lens surfaces and a shorter focal length at the edges. Bi-Convex lenses are mainly used to converge light from point sources or transmit images to other optical systems. They have the most significant light-converging effect and can focus parallel light precisely onto the focal point.
| Product Name | Bi-Convex Lens |
| Material | Fused Silica, Optical Glass |
| Diameter Tolerance | ±0.1mm, ±0.05mm |
| Center Thickness Tolerance | ±0.1mm, ±0.05mm |
| Centration Error | 1′-3′ |
| Surface Quality | 60/40-20/10 |
| Effective Aperture | ≥90% |
| Surface Figure | λ/4, λ/8 |
| Chamfer | <0.25mmX45° |
| Coating | Customizable |
